Segment Box Girder Formwork
Product Description:
Technique Content
Precast girder formwork has advantages of high-precision, simple structure,retractile,easy-demoulding and simple operation. It can be hoisted or dragged to casting site integrally, and demoulded integrally or piecemeal after concrete achieving the strength, then pull out the inner mould from the girder. It is handy installing and debugging, low labor intensity, and high efficient.
product analysis
Technical index:
(1)Arbitrary point normal deviation of actual contour with designed contour ≤2mm；
(2)The mould surface radian is accordant.Deviation of dislocation and gap ≤0.5mm;
(3)Deviation of every single plate manufactured length and width±1mm
(4)Deviation of planeness ≤3mm/2m;
(5)Deviation of mould assembling length ±10mm;
(6)Deviation of bottom mould midline ≤2mm;
(7)Deviation of bridge panel with bottom mould midline ≤10mm
(8)Deviation of web plate midline ≤10mm
(9)Deviation of bulk head center ≤5mm
(10)Mould inclination ≤3‰
(11)Pedestal plates unevenness ≤1mm
(12)Deviation of end mould anchor recess ≤3mm
(13)Turnover frequency: more than 50 times
| Product Description | Segment Box Girder Formwork | Origin | China/FTA | Trademark | TY-FORMWORK |
| Certificate | ISO9001 | Production Capacity | 4000 Tons /Month | Main Spans | 64m～200m |
| Transport Package | Export Standard Packing | Design Calculation | MIDAS | Sructural style | Modular Bolting /Welding |
| Method of assembly | On-site | Technical guidance | YES | Drawing supplied | Assembly drawings |

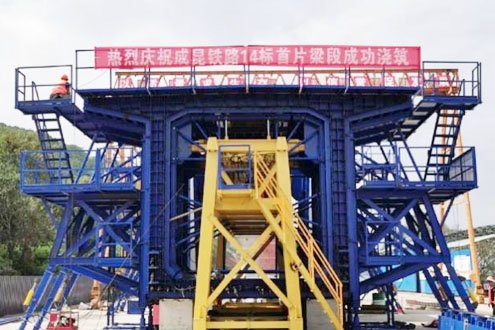

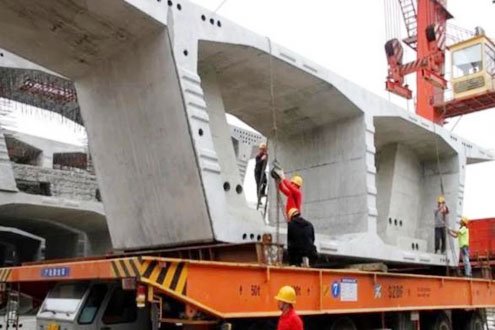

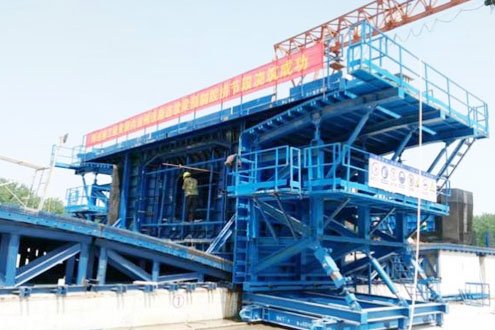

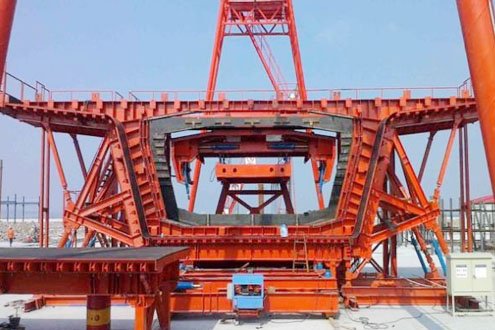

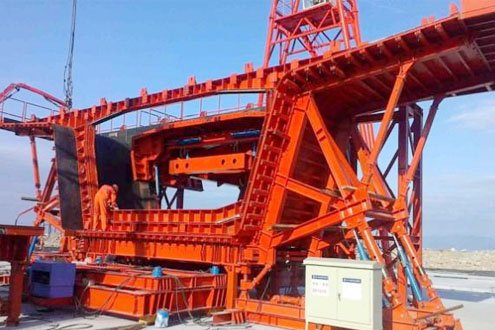

Products Show
Product Delivery
Packaging:
1. Generally, the total net weight of loaded container is 22 tons to 25tons, which need be confirmed before loading.
2. Different packages are used for different products:
---Bundles: Timber beam, steel props, tie rod, etc.
---Pallet: Small parts will be put in bags and then on pallets.
---Wooden cases: It is available on customer's request.
---Bulk: Some irregular goods will be loaded in bulk in container.
Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
About us
Shandong Tongyao Heavy Industry Co.,Ltd (STHI) is an Professional High-tech Enterprise, Which is dedicated to the Research & Development, Manufacturing, Selling, Leasing and Consulting of Bridge Formworks and Road & Bridge and Tunnel Construction Equipment. The company was established in 2015, locating in Binzhou City of Shandong Province China, and now is the bench-marking enterprise of Road and Bridge Construction Equipment System.
Since its inception, the company has scrupulously abided by the values of “creating value for customers, opportunity for employees, and benefit for the society” and concentrated on providing our global clients with diversified products application solutions and creating the most valuable TongYao international brand. Till now, we have more than 40 kinds of products, including bridge steel structure, launching girder, form traveler, segment girder and hydraulic climbing formwork etc., which being widely used in bridge, municipal projects, water conservancy, tunnel, nuclear power and some other large projects. With the help of professional logistic system and after-sale service team, we strive to achieve the total logistic radiation of the key area throughout the world, and make sure the rapid integration and scientific allocation of the resources.
Certifcations
Foreign trade certificate
Steel structure Grade II Qualification
Business License
_16982921976279
_16982922138725
_16982921808449
Customer Photos
6771697683251_.pic
6781697683252_.pic
6681697683167_.pic
6671697683166_.pic
6691697683168_.pic
6711697683171_.pic
6721697683172_.pic
6751697683233_.pic
6761697683249_.pic
891652857834_.pic
7111698287902_.pic
7121698287903_.pic
7101698287902_.pic
P1090727
P1090731
7091698287901_.pic
IMG_20161125_113302
P1090727
P1090731
P1160782
P1160779
P1160827
P1160834
P4160544
-2
-2
-2
Faq
Our factory is located in Binzhou city, Shandong province, where is 350km far from Beijing, 200km far from Tianjin port.
Ex works delivery is usually 30 days after receipt of your contract and advance payment.
Steel GB Q235B or Q345B.
1) 50% TT in advance, balance before shipment.
2) 50% TT in advance, 50% by Irrevocable l/C at sight.
